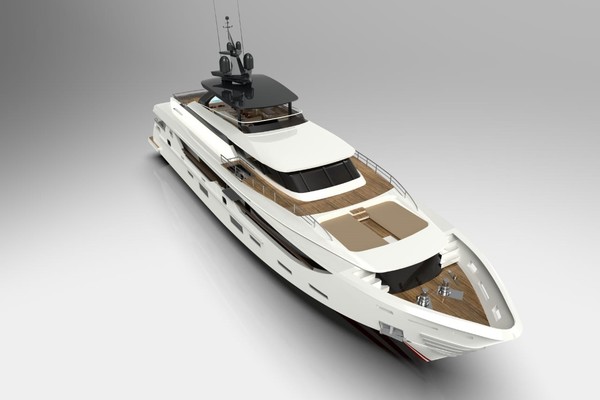

2026 Hargrave 118' _{(35.97 m)} F 118

LENGTH OVER ALL : 36 meters  / 118 ft

LENGTH WATER LINE   32.1 meters  / 105 ft

BEAM MAX : 7.830 meters  / 25.7 ft

DRAFT(max) :  2 meters / 6.5 ft

DISPLACEMENT (Light Ship): 150 Tonnes

DISPLACEMENT (Fully loaded): 180 Tonnes

GROSS TONNAGE : 265 GT (Approx.)

TOP SPEED : 24 Knots with the 2000 HP / 28kts with 2400 HP

DELIVERY: 24 Months from Initial deposit

PROPULSION

MAIN ENGINES 2 x CAT C32 2000HP @ 2300 Rpm (Option CAT C32 B 2400HP)

GEARBOX              ZF5000 SERIES 2,98:1

ENGINE CONTROLS:  GLENDINING ( 1 main + 3 remote station)/ MTU engine controls

GENERATORS     2 x NORTHERN LIGHTS  65 KW

SHAFT PROPELLER: CJR (UK) or similar 4,5” AQUAMET 22HS Shaft / 5 Blades Class S Propellers

ELECTRIC SYSTEM:

Main Service 20 / 208 VAC 3P 60Hz

Auxiliary and House Service  24VDC Service and Engine Start System

ASEA Power converter 75 KVA

TANK CAPACITY

Diesel Oil : 6000 Gallons / 22710 Lt

Fresh Water: 1.000 Gallons / 4.000 Lt

Black Water: 500 Gallons / 2000 Lt

GreyWater: 700 Gallons / 2700 Lt

BUILD / CONSTRUCTION

HULL / SUPERSTRUCTURE : ALUMINUM

OPEN DECK : HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT

PAINT SYSTEM : AWLGRIP

MASTER EQUIPMENT LIST

Airhorn: Kahlenberg

Anchor winch and Capstans: (x2 )Maxwell VWC8000 Hyd. Windlass, VC8000 Capstans or Hydromar

Windscreen Wipers :Speich

Alarm & Monitoring system : Beijer - Wago

Anchor and Chain: (x2) 200kg 316L S.S. Pool Anchor, (x2) 110m (360 ft) 16mm Grade 2 Studlink Chain

Audio / Video: Crestron

Batteries and chargers: Victron

ER Venilation : Delta T System or Gianneschi

Bow thruster: 65kW Bow thruster

Stabilizer: Sleipner Side Power At rest Stabilization

Fuel oil filters: Racor

HVAC: Cruise Air/ Dometic Chiller assembly (x3) 72,000 BTU/ 6TON

Steering System : Data Hydraulics AC /DC Steering

Insulation :

Unifrax B15 Engine room and B0 Galley insulation

Rockwool Thermal cabin insulation

Navigation and communication equipment: GARMIN or Furuno

Pumps: HeadHunter, Depco or Gianneschi

Sewage treatment: Headhunter (Option Hammann)

Toilet system: Headhunter (option Tecma)

DECK EQUIPMENT

SWIM LADDER: Hydraulic telescopic

CRANE: Hydraulic Deck Crane

HANDRAILS: 316L S.Steel

PANTOGRAPH DOORS: (x2) Pantograph Door

SLIDING DOORS: Electric Operated main deck

WATERTIGHT DOORS AND DECK HATCHES: Watertight Deck Hatches and Engine room WT Fire Doors

AFT BEACH SHELL DOOR: Hydraulic Actuator Operated Aluminum Watertight Door

SAFETY EQUIPMENT

LIFE RAFTS: 2 x 16 Persons

FIRE PROTECTION: FirePro Engine Room Fire Protection

FIRE & GENERAL ALARM SYSTEM: TYCO

MAIN CHARACTERISTICS

ACCOMODATION : 10 GUESTS + 7 CREW

CLASSIFICATION :  Bureau Veritas
