80′ HARGRAVE LRC

BY SETZER DESIGN GROUP

Hargrave is proud to announce the addition of the 80′ Long Range Cruiser to its fleet of motoryachts.  The design represents a whole new direction for Hargrave with the explorer yacht. The interior designs are open to unique personalization to suit each client’s requirements. The yacht is built with hand laid fiberglass and foam cored reinforcement over the water line with watertight bulkheads, twin CAT C-32, a pair of 32 kW Northern Lights gen sets, and 4 to 6 staterooms.

The 80 foot yacht, designed by Setzer Design Group belongs to the ocean and it is anticipated to be as popular as the other Hargrave designs.

Twin Caterpillars C-18 TA, 1150 HP

Additional information coming soon.

DELIVERY SUMMER 2012

New Jack Sarin hull serves as the platform for this exciting new model from Hargrave featuring a four king berth stateroom layout with crew aft. Powered by 1900 hp Cat C-32 Acerts  this fast powerful offshore cruiser has our popular country kitchen forward, formal dining for ten, large salon and aft deck and a great 6′ cockpit with live well. $10,275,000 with full warranties.

Additional Information coming soon!

This post is password protected. To view it please enter your password below:

Password:

This is a five stateroom (2 cabins can be crew or guest) design we developed for an American couple who summer in the Mediterranean and wanted the room and comfort of an American boat on the inside but also wanted a low profile European exterior. With the ability to handle high horsepower Cats and jet drives this boat has the comfort, range, and performance Hargrave is known for. (We featured this yacht in our design office and the client building 74′ boat below saw the exterior and wanted to know if could we incorporate the exterior styling into his design.) Priced from US$5.5 to US$6.5  depending engine and interior package selected. Great financing available.

If you are looking at production boats in this size range, maybe you should look at creating your own custom masterpiece with Hargrave. Whether you are looking for modern styling and performance like this project, or you are looking for trawler or LRC styling in this size range with trans-Atlantic range, Hargrave is the place to go with your dream. In the past few months we have seen a real surge of interest in custom yachts in this size range and we are seeing some great creativity in the designs our customers are creating. The common denominator is these owners enjoy making all the necessary decisions on the water and having a hands-on relationship with every piece of equipment onboard. Custom designed, custom built, and yet priced to compete with production built yachts. Priced from $3.5 – $4.5 million fully equipped with special terms and financing available.

When we premiered our spectacular new 136′ Hargrave DREAMER at the boat shows we assumed everyone would ask, “Can you built it bigger?” which is normal, and yet several clients asked if we could scale it back a bit. The 125′ yacht was designed for an existing 97′ Hargrave owner who wanted a five stateroom layout. After dealing with the historic problems of crew turnover he also decided it was well worth the investment to give each crew member his own cabin. As with a fuel curve, when the cubic volume began to drop the pricing dropped dramatically and the value became obvious. If you are in the market for a five stateroom tri-deck take a look at the creative options Hargrave is currently offering and competitively priced at $14.0 million fully loaded with attractive terms and financing available.

Design & Build

Vessel Walkthrough Overview

Entering the salon from the aft deck one gets a sense of open space. There is an easy chair with ottoman to port along with two sofas and tables.

To starboard are two chairs, entertainment center and storage cabinets.

Forward to port is the U-shaped galley with granite counter tops. To starboard, a is a large granite counter-top with Sub Zero refrigerators and freezers below.

Forward of the galley to port is a casual dining area . In the center is a helm station.
To starboard is a staircase from the lower control station which leads to the flybridge with a upper helm.The fly bridge hard top has clear panels that can be dropped into place to make an air-conditioned enclosure.

On the next level aft is the master stateroom with a king size bed that can be made into two large twins, his-and-hers baths sharing a shower enclosure on centerline.There is a twin guest cabin to to port, a second guest cabin with T-bunks to starboard each with a private head and shower. All the way forward, is an enclosed VIP stateroom with private head and large shower.

There is a crew quarters for two located aft on the lower deck with access through a watertight transom door.

Salon

The Salon feels wider then Goose Bumps actual 21.5 ft. beam. The entire main deck interior is a large open, well-lit, very spacious area giving this yacht a much larger feel. Many have commented that the interior of Goose Bumps seems more like that of a yacht 20 feet longer.
Entering from the spacious aft deck, the entire salon is a large conversation area with tasteful, custom built leather furniture. there are two large comfortable couches and 2 leather chairs.

Across from the leather couch is a custom entertainment center with a 42-inch high definition plasma TV that drops down into the side panel when not in use.

The carpet is light. The wood throughout the yacht is satin finished Mozambique Mahogany. On the main deck there is an abundance of natural lighting via the 14 very large windows. All of the windows and portholes in the yacht have custom built wooden blinds.
This yacht has a wonderful, comfortable “feel” about it. The interior design is tastefully contemporary.

Audio Visual Equipment for Main Salon

Galley/Helm

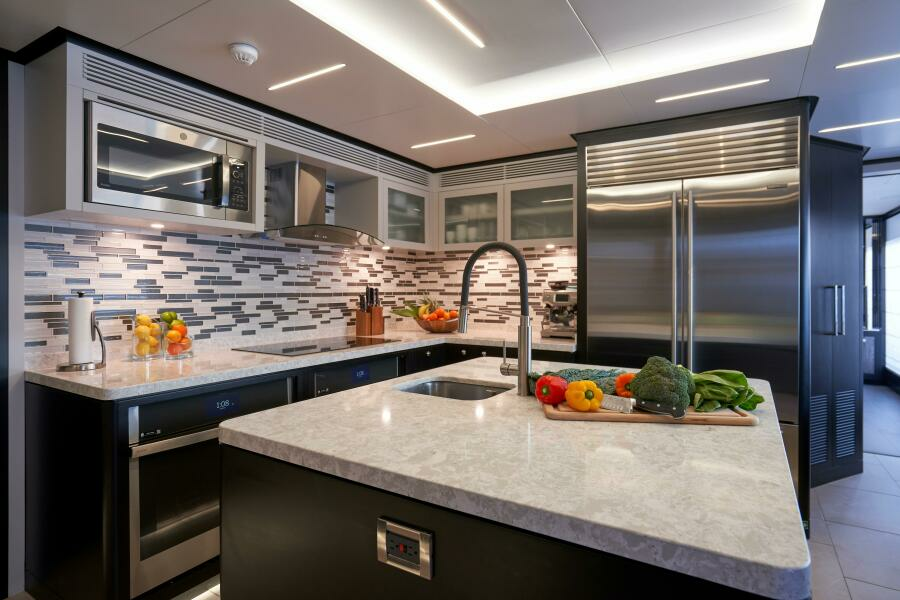

Forward of the salon is the large functional galley, containing the latest in appliances and refrigeration. The galley has more then ample space on its counter tops for food preparation. The counter-tops are granite and compliment the wood nicely.

Forward of the Galley to port and adjacent to the master helm is another casual dining area with seating for 8. The helm has a Stidd captain’s chair and an impressive array of the latest electronics. See the electronic list at end of listing

To starboard of the helm is entry to the side deck and also has a second stairway to access the flybridge and upper control station.

Galley, All Stainless Steel Appliances include:

Aft Deck

The covered aft deck area easily seats 8 people for alfresco dining.
The teak decks add warmth and nautical atmosphere to this area of the yacht.

To port, there is a stairway leading to the flybridge and sun bathing area. At each side of the large aft deck settee, are stairways port and starboard leading to the large swim platform and the main entrance to the crew quarters.
Audi/Visual Aft Deck
Sharp 32″ LCD Display
LSE 30″ Fold Down Ceiling Mount w/Quiet Motor
Poly-Planar MA 6800 Round Speakers x 4
Crestron 12 Button Decorator Function Keypad

Flybridge

When one first enters the flybridge they are impressed with the sheer amount of space it encompasses and how efficiently it is utilized. The area is fully air conditioned is reminiscent of yachts in a much larger class It is ideal for southern climates in the heat of the day.

The flybridge is enclosed with Isinglass which can easily be opened to allow free flow of air in good weather.

Behind the fly-bridge control station and to starboard, there is a large settee (storage under) that provides dining for 8 guests. Across from this to port is a large fully equipped bar.There is a refrigerator, drawers, ice maker and sink behind the bar.

There is also an IPOD and FM radio through the Crestron 12 button keypad on the helm. There is a stainless steel ladder to topside of upper helm, which fits over the jacuzzi/spa cover.

One notices the custom hardtop and mast are designed to allow more visibility then what is found in most Hargrave Yachts.

Sun Deck

Moving aft of the isinglass enclosed fly-bridge area is the sunning area complete with a large sun pad alongside a Jacuzzi for 6.

Further aft there is space for 3 full-length lounging chairs. Note that this area could also be used to store the tender if one were to add a davit. The deck has been reinforced for this purpose.

Currently the tender is stored below on a custom TNT lift which also functions as part of the swim platform. The owner had found this arrangement ideal in his previous yachts and has incorporated it here as well.
Sound:
IPOD and FM radio through upper helm keypad
3 x Poly-Planar MA6800 Round Speakers with their own volume control on aft deck

Upper Aft Deck
Stainless steel BBQ

Master Stateroom

The master stateroom has a king size berth that can easily be converted to 2 single beds as depicted in this photo. It has his and hers heads with a large glass shower area connecting the two. It has seperate vanity and ample storage. The master has a TV which electronicaly folds down from the ceiling so it is out of the way when not in use.
Audio/Visual equipment for Master
Cybettone Single Disk Player DVD/CD
32″ TV Recessed into ceiling
Sharp 32″ LCD Display
Kramer 903 Mini-Amplifer
Speaker Craft CRS Two-Speaker Pair
Extron MLS 103 V Composite Video Switcher
Crestron Mini LCD Handheld Remote
Crestron 418MHZ RF Gateway
DVD player
Direct TV reciever

VIP Stateroom

At the forward end of the passage way is the VIP stateroom which includes a queen sized berth, a head with seperate shower and fold down flat screen TV..
Audio Visual Equipment
LG 17″ HD/WXGA LCD Display
17″ Fold Down TV
Cyber Home Multi-Region DVD Player
Kramer 903 Mini-Amplifier mounted
Speaker Craft CRS Two Speaker Pair
Extron MLS 103 V Composite Video Switcher
Crestron Mini LCD Handheld Remote
Direct T.V reciever

Guest Staterooms

Off the main passageway below is a guest state room with twin berths, fold down TV and ensuite head with seperate shower.
Audio/Visual
(2) 17″ TV Recessed into ceiling of Port & Starboard Guest Staterooms
Cyber Home Multi-Region DVD Player mounted in both Guest Staterooms
Speaker Craft CRS Two Speaker Pair mounted in both Guest Staterooms
Crestron 418Mhz RF Gateway mounted in both Guest Staterooms

Crew Stateroom

The crew quarters for two is located aft on the lower deck with access through a watertight transom door off the swim platform. There is a crew refrigerator and microwave.
Audio /Visual
Cyber Home Multi-Region DVD Player
Kramer 903 Mini-Amplifier
Speaker Craft CRS Two Speaker Pair
Russound R2D RCA Input Jacks Decora Plate
Extron MLS 103 V Composite Video Switcher

Photo Gallery

Click thumbnails to enlarge

Electronics

Equipment List
Main Engines (2) Caterpiller C-32 1650 hp engines
Sea Recovery 1200 GPD watermaker

Air Conditioning:
Cruiseair A/C and Heating System
(1) 24000 BTU in Salon
(2) 16000 BTU in Galley and Pilothouse
(2) 12000 BTU in Master Reverse Cycle Units
(3) 7000 BTU & Crusiair VIP & 2 Twins
(4) 44000 BTU with Blower on Flybridge

Hydraulic System:
Naiad Stabilizer System Model 254 with 9 sq. ft. fins with multi 2000 and Naiad Fairing Block
Naiad HPS Stern Thruster 10HT 25HP with Single Reservoir Tank
Hydraulic Bow Thruster HPS-36 hp
Double Stabilizer & Bow Thruster backup water pump off starboard main engine
Hydraulic steering by Hynautic, interfaced with auto-pilot

Miscellaneous Equipment
Glendinning engine controls with dual fixed stations & remote hardwired 60′ extension
Interceptor plates
Double Racor filers on both engines
Seafire Extinguishing System with manual pull in Crew cabin
Smoke detection and alarm system with heat detection in galley & engine room
Reverso oil change system
(5) Headhunter heads with 2 Mach 5 110 pumps
Fill-rite #901-1.5 flow meter with Oberdorfer fuel transfer pump
2 Torrid 30 gal. hot water tanks
125 gal. black water holding tank with indicator at helm station
Kahlenberg air horn
Safety rails around twin engines
Custom work benches in engine room over transmission and (2) over generators
2nd layer of insulation between engine room and master stateroom
Fresh water filling faucet in engine room
Fire suppression system in engine room
Remote alarms for high water & bilge pump- master stateroom, crew and guest staterooms.
Engine Alarm System for low pressure & high temperature
(4) Jabsco engine compartment blowers
24v lights and 110v power receptacles in engine room (4 each)
Groco Seastrainer- single strainer, 4′ tall
Sea Chest – all raw water seacocks enter through sea chest
(4) Lovett sump pumps
Y-valve for dockside pump out
Tide strong marine dripless shaft logs
Tide Seal dripless rudders
In-Line recirculation hot water pump
3-1/2″ stainless steel shafts
(2) Sets of 4 Blade bronze propellers
Main bronze struts
Stainless steel rudders
Custom underwater engine exhaust with idle by-pass
Under water lights- 6 aft & 2 forward

Electrical System
Twin 27.5 kw Onan generators
220v, 110v and 60Hz Electrical System
(8) 200 amp/hr batteries for engines and ship’s power
2 Separate 120 amp/hr batteries for generator
Main elctrical panel with separate AC Power control and circuit breaker panel
(2) 100 AMP Galvanic Isolators, Acme Transformers
(5) Dolphin battery chargers
(2) 100 amp Sentry/Dolphin AC/DC light transformer 110/24v
Newmar converter 50A 24v/12v

Deck Equipment
Eisen glass enclosure for hard top on flybridge
Teak swim platform
TNT lift and removable chocks at transom
(2) 6 man offshore liferafts
Marquipt Sea Stairs with handrails
EPRIB
Brownies LP Marine Compressor Yacht Pro 45 with manifold, boat hoohak system 3-diver reef package
Brownies HP Dive Compressor,dual filling station to aft deck
(5) Aluminum dive tanks & holders
Stainless steel 316 plow anchor (100 lb.) with 275′ chain
Nilsson V3500 24volt windless
Large storage areas on forward deck
TV/Telephone inlet
Fresh water washdown in (4) locations- bow/aft deck/flybridge/engine room
Windshield wipers with blades
American Whirlpool Chicago Yacht Spa with air channel and insulated cover
(2) 3″ X 16′ FRP pipes for engine room water discharge through transom
(20) Exterior watertight lights at deckhouse outside
(8) Exterior waterproof lights on bow
(8) Underwater lights, 6 on stern, 2 on bow
Aft deck storage for Marquipt ladder
Settee with teak foot rail on port side of flybridge
Removable “U” shape hand rails on boat deck
Aritex watertight door with backlit nameplate in engine room
Life jackets, fenders, fire extinguishers, dock lines and flares
(2) Stidd captain’s helm chairs

• Year:2012
• Current Price: US$ 14,300,000
• Hull Material: Fiberglass

The new Hargave 125′ Raised Pilothouse is being built as part of the company’s new “Instant Gratification Program” announced last year, which now offers their most popular models already under production, so they can cut the delivery time down to months instead of years.

Created for those who like to entertain on a grand scale, every room and every design detail has a larger than expected feel to it. The combined effect ensures this luxury yacht will have that “wow” factor which knowledgeable upscale owners demand.

With her European styling incorporating full “wrap-around” windows she will have luxurious accommodations for eight guests. As with all Hargrave yachts, this new 125′ Raised Pilothouse is being built to the highest quality and safety standards and will be ready for her new owners to step aboard in only months.

Powered by Twin Caterpillar C-32, 1825hp
Generators: Two Caterpiller 45kw w/Soundshield & water drop exhaust
Architecture: J.B. Hargrave Yacht Design
Interior Designer: Shelley DiCondina of Yacht Interiors by Shelley

Photo Gallery

Hargrave’s new 125′ Raised Pilothouse Project is under construction and waiting for you to start your adventures together!

Over the past two years, Hargrave’s new 101′ Raised Pilothouse series has proven to be immensely popular, with five individually customized yachts already built to this length. If you walk aboard any of the yachts featured in Hargrave’s fleet you would easily see what it is that makes every Hargrave yacht “Custom”. Each one boasts a different floor plan, different profile, different equipment package, and different interior decor that reflects the exact wishes of the owners.

One of the latest yachts launched in this series is Solo Tu. This yacht easily accommodates up to eight overnight guests in four large staterooms and creates the opportunity to travel, entertain and enjoy life’s adventures surrounded by loved ones.

Solo Tu is based around the popular country kitchen layout which allows for casual family gatherings, while still providing a professional galley to service the needs of owners and guests. Her cabin deck plan begins with the full beam master suite and manages to incorporate a large shower accessed from either side along with a marble encased Jacuzzi tub on the starboard side. Her three guest cabins are all suites with queen berths, while her crew accommodations are aft with three cabins.

Photo Gallery
